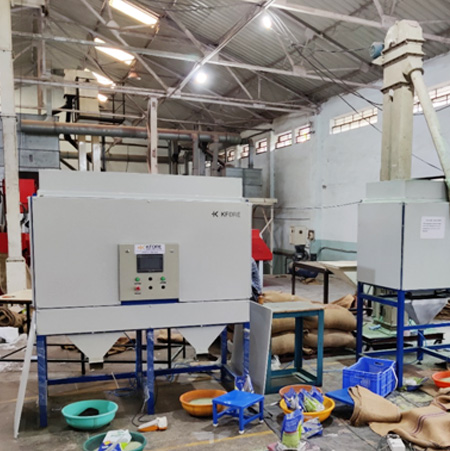

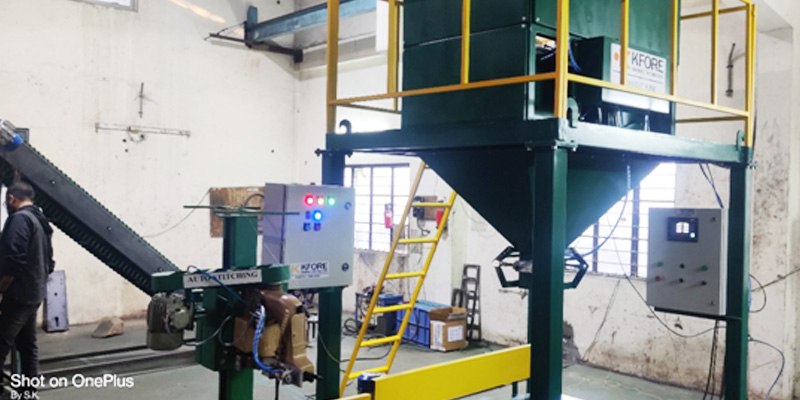

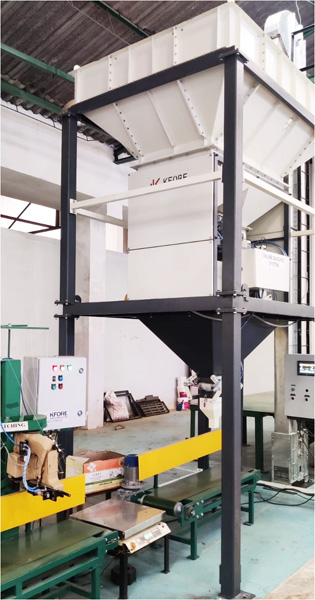

Bagging System

A variety of materials and bulk products are packaged by using open mouth filling systems. The process of involves feeding, weighing and dumping into the bag which is clamped on an pneumatic holder. The bags are picked and placed automatically by the bag placer system. The bag is then released and dropped onto a conveyor. The automatic pre-stitch feeder carries the bag for automatic closing of the bag.

Net weigher scales pre-weighs the material in a weight hopper and then dump it into a bag. Typically, a net weigh scale is about 2x faster as a comparable gross weigh scale because, as the hopper of a net weigh scale is being filled, the bag can be positioned.

Machine available in single head & double head model depending on speed requirement. Double head machine will have bag clamping & discharge chute for one bag only it consist two weight hoppers which give drop simultaneously hence increase productivity .

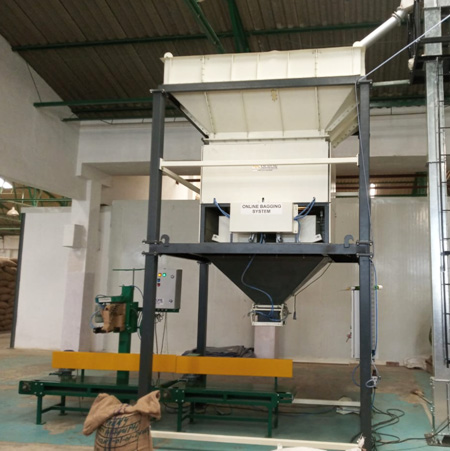

Automatic stitching system is provided as add on along with our machine as per requirement of customer
